17L Pressure Reducing Reservoir Railway Pressure Reduce Tank Pressure Reducing Air Cylinder

17L railway pressure reducing reservoir

pressure reducing air cylinder

railway air brake parts

起源の場所:

中国

ブランド名:

OEM Customized

証明:

Railway TB Pressure Vessel Standard

モデル番号:

17L

連絡ください

引用を要求しなさい

17L Pressure Reducing Reservoir Railway Pressure Reduce Tank Pressure Reducing Air Cylinder

製品詳細

公称ボリューム:

17L

バレル外径:

250mm

全長:

約420 mm (楕円ヘッド含む、リフティングブラケットを除く)

鋼板の厚さ:

4.0mm圧力容器鋼板

正味重量:

約42kg (40～44kg、塗装なし)

使用圧力:

500kPa

静水圧テスト圧力:

750kPa

インターフェイス標準:

2 個の G1/2 サイドパイプコネクタ、底部ネジ付きドレンプラグ

適用されるシステム:

鉄道GK三弁ブレーキシステム、空荷調整装置

実行標準:

鉄道TB圧力容器仕様

支払いと送料の条件

最小注文数量

10個

価格

USD 100-600 / Piece

パッケージの詳細

内側に白いカスタムフォーム位置決めブロックが入ったカートンボックス

受渡し時間

生産に15〜30日、在庫に3〜7日

支払条件

T/T、L/C、ウェスタンユニオン

供給の能力

毎月500個

Double Chamber Air Tank Air Receiver Compact Integrated Air Tank for Railway Freight Wagon

最高の価格を入手する

160L High Volume Welded Main Air Reservoir Railroad Air Receiver for Brake System

最高の価格を入手する

Dual Compartment Welded Railway Air Reservoir 11*17 for Freight Wagon Brake System

最高の価格を入手する

78L Railway Brake Air Tank Air Receiver Tank for Railway & Industrial Use

最高の価格を入手する

連絡ください

86-562-2882588

今連絡してください

製品説明

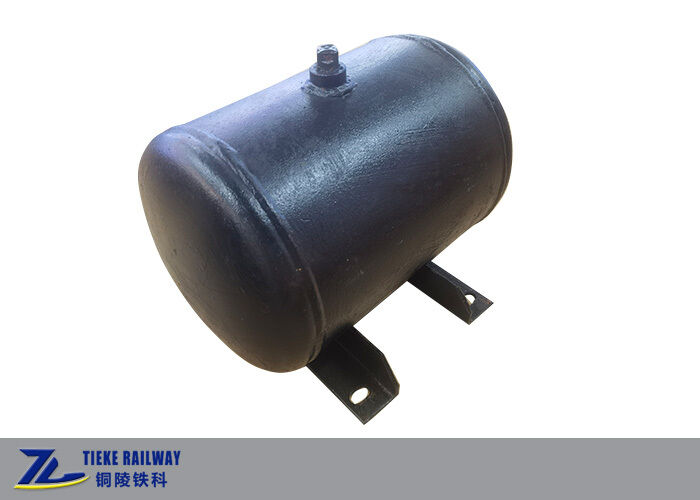

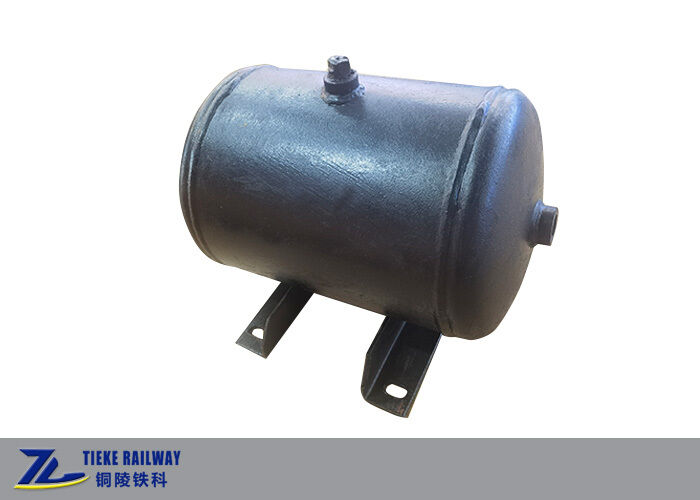

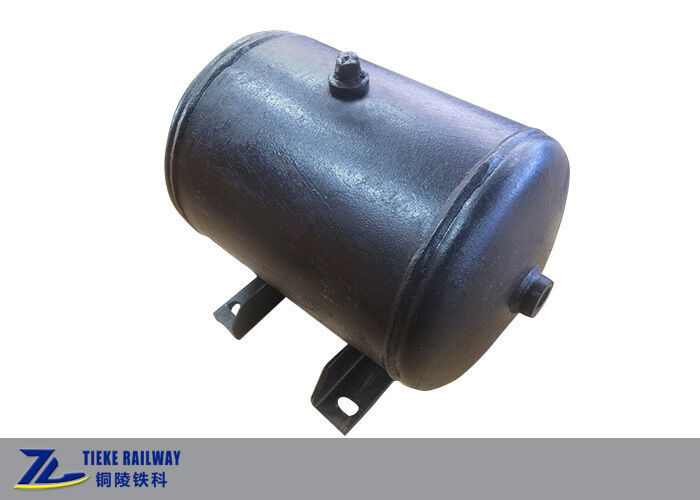

17L Pressure Reducing Reservoir Railway Pressure Reduce Tank Pressure Reducing Air Cylinder Product Overview The 17L Pressure Reducing Reservoir , also known as railway pressure reduce tank and pressure reducing air cylinder, is a core pressure regulating component specially designed for traditional GK triple valve brake systems of railway freight wagons, including old-type covered wagons and open-top wagons. Cooperating with the empty-load cut-out cock and empty-load
